SysCat Module


SysCat is a standardised catalogue of large-scale solar systems developed following extensive research and testing.

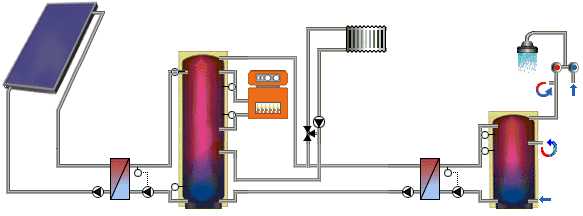

SysA1

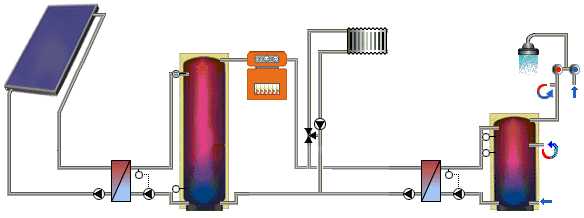

SysA2

Categories A and B are integrated into the additional T*SOL module.
Systems in Category A are large-scale systems with solar space heating and systems in Category B offer a further selection of configurations tried and tested during the German government "Solar Thermal 2000" programme.

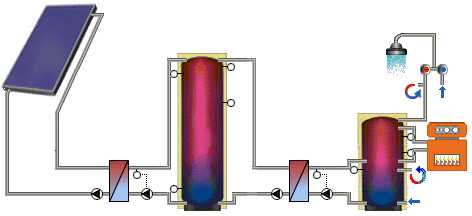

SysA3

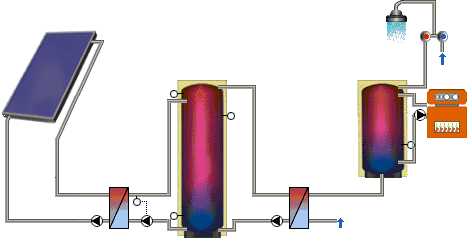

SysB1

Large-scale systems typically include the use of large solar buffer tanks, external heat exchangers and the application of Anti-Legionnaire’s Disease Switching.

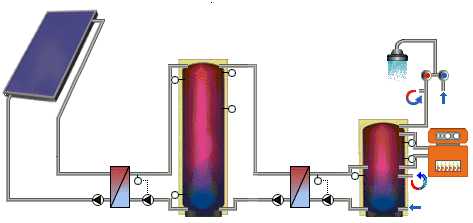

SysB2

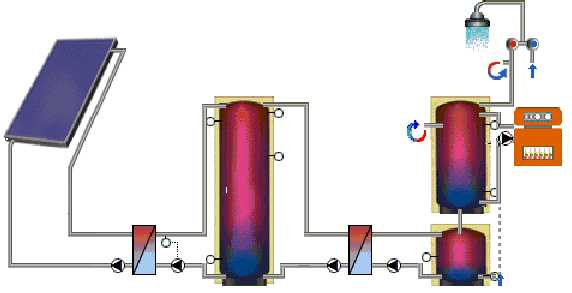

SysB3

The systems illustrated above are all included in the additional T*SOL 4.02 SysCat Module.
